Rims
Etuvannekehä
Rapide Sprint CLX Carbon Clincher Front, 700c (CR2374)

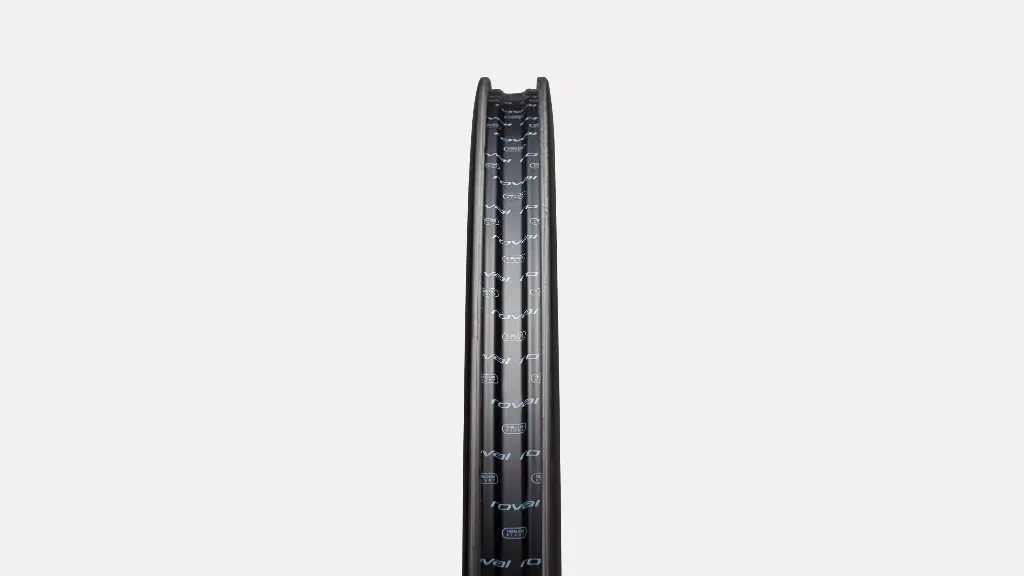

Etuvannekehän mitat

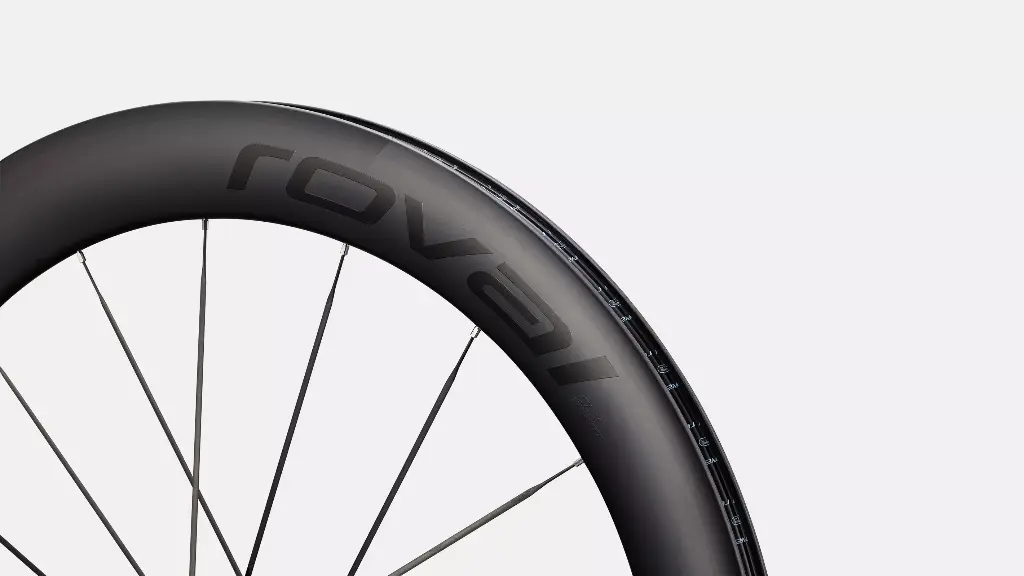

Depth: 63mm, External Width (at widest point): 35mm, Internal Width: 21mm, Bead Hook Width: (4.3)mm
Takavannekehä
Rapide Sprint CLX Carbon Clincher Rear, 700c (CR2375)
Takavannekehän mitat
Depth: 58mm, External Width (at widest point): 34.4mm, Internal Width: 21mm, Bead Hook Width: (4.2)mm
Vannekehän rakenne
Carbon Clincher Hooked
Vanteen koko / ETRTO
622 × 21 (700c)
Reikien määrä
Front: 18H, Rear: 24H
Tubeless-yhteensopivuus
Yes
Inserttien yhteensopivuus
Yes
Jarrujen yhteensopivuus
Disc (Centerlock)
Venttiilin varren pituus
Roval Tubeless Vlave, Alloy 80mm
Hubs

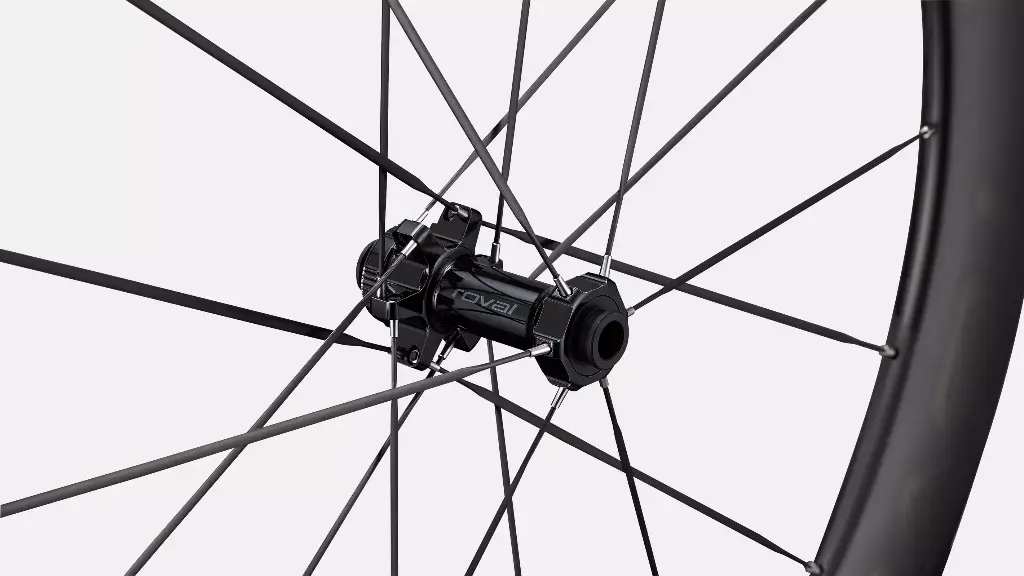

Front Hub
Roval Low Flange Road Hub, Center Lock, 12x100mm, 19mm OD End Caps Installed (LF18-F)
Rear Hub
Roval Low Flange Road Hub, Center Lock, 12x142mm, (LF19-R)
Front Hub Bearing
DT Sinc Ceramic Bearings - DS: 6802 (15 x 24 x 5 mm), NDS: 6802 (15 x 24 x 5 mm)
Rear Hub Bearing
DT Sinc Ceramic Bearings - DS:1526 (15 x 26 x 7 mm), NDS: 6802 (15 x 24 x 5 mm)
Rear Freehub Body
DT Swiss Ratchet EXP (36T ): Sram XD-R
Spokes & Nipples
Front Spokes
Roval by Arris, Composite Aero Spoke with Ti End Pieces: T-head, 18qty, (DS: 251mm, NDS: 261mm)
Rear Spokes
Roval by Arris, Composite Aero Spoke with Ti End Pieces: T-head, 24qty, (DS: 267mm, NDS: 263mm)
Front Lacing Pattern
Two-Cross / Radial (2:1), Not Tucked
Rear Lacing Pattern
One-Cross / Three-Cross (2:1), Not Tucked
Nipples
Arris MK4 Spoke Nipple Alloy, 6 mm
Tire Info
Approved Tire Widths
24mm-38mm
Max Pressure
Tubeless (110psi) Tubed (130psi), 36mm-38mm: Tubeless (60psi) Tubed (60psi)
Tire Type
Clincher Tubeless and Clincher Tube Type
Tubeless Tape Width
25mm
Design Tire
RapidAir TLR, 28mm
Weight
Front Weight
640g (with valves and tape)
Rear Weight
755g (with valves and tape)
Wheelset Weight
1395g (with valves and tape)
General
Extras
4 Extra Spokes and Nipples, Roval Wheel Bag, Shimano HG 11/12-Spd. Road Freehub & end Caps (rear wheel only)
E-bike Approved
No
Certifications
ISO 5775-2, UCI Approved
Weight Limit
275 lbs. / 125 kg.
Assembly Method
Hand Built
Warranty
Limited Lifetime Warranty
