TEKNISET TIEDOT
Sähköpyörä
Moottori

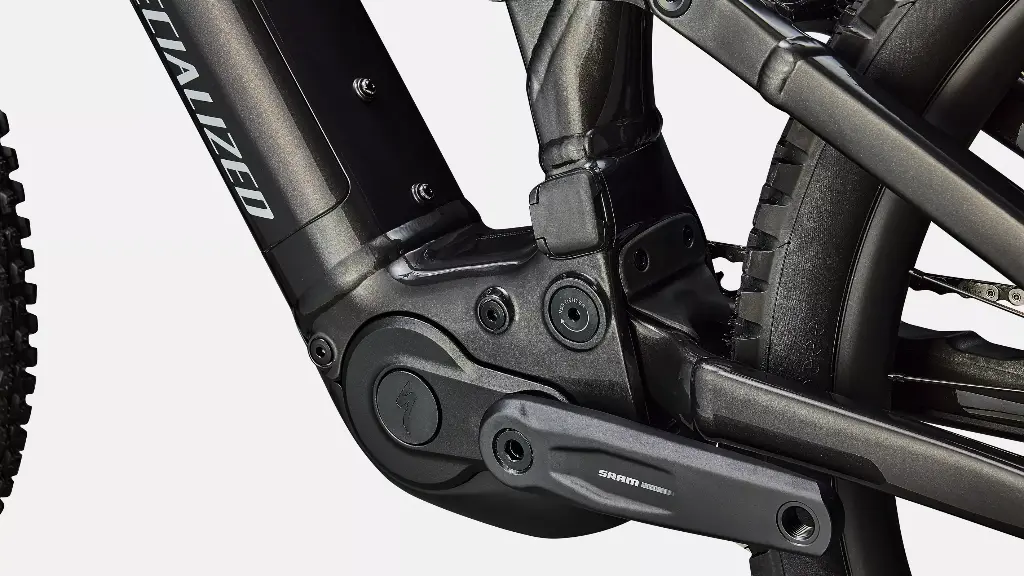

Specialized 3.1 Motor, 101Nm torque, 666Nm power
Akku
840Wh battery
UI/etäohjaus

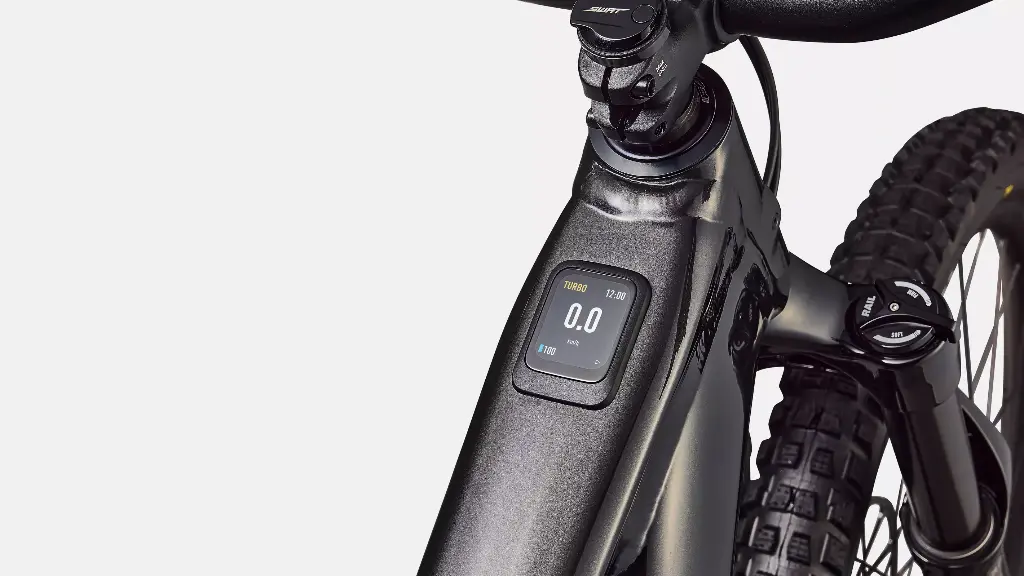

All New MasterMind T3 Display System, 2.2" high resolution color screen, fully customizeable with Specialized App
Laturi
Specialized 4amp charger
Runkosetti
Runko
All new Levo 4 M5 Alloy frame, 150mm travel,, adjustable chainstay, adjustable head tube angle, adjustable bottom bracket, internal SWAT storage 148mm spacing, 29" front wheel/27.5" rear wheel, fork travel up to 180mm
Satulatolpan kiristin
Alloy, 38.6mm
Jousitus
Takaiskunvaimennin

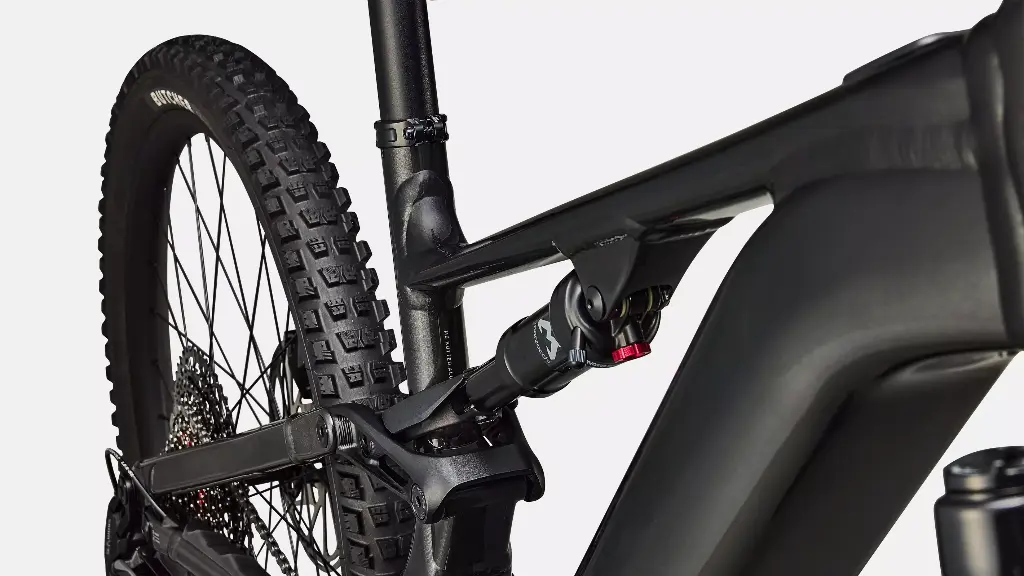

*Marzocchi Bomber Inline, EVOL LV air sleeve, rebound adjust, 210x55mm
Haarukka
Marzocchi Bomber Z1, 29", S2-S6: 160mm, S1: 150mm, sweep adjust compression
Jarrut
Etujarru
SRAM DB8 Stealth, 4-piston caliper, hydraulic disc, 220mm Centerline rotor
Takajarru
SRAM DB8 Stealth, 4-piston caliper, hydraulic disc, 200mm Centerline rotor
Voimansiirto
Vaihdevivut
SRAM 70 trigger, 12-speed, single click
Takavaihtaja
SRAM Eagle 70 T-Type
Rataspakka
XS-1270, 12-speed, 10-52t
Ketjut
SRAM Eagle 70 T-Type Flattop Chain
Kampisarja
SRAM S1000 Crankset, ISIS Interface, Integrated Guard, 55mm Chainline, 155mm
Eturattaat
SRAM 34t T-Type chainring, 104 BCD, steel
Kiekot ja renkaat
Vanteet
Specialized, hookless alloy, 30mm inner width, tubeless ready
Etunapa
Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h
Takanapa
Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h
Pinnat
DT Swiss Elemental
Eturengas
Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 29x2.4"
Takarengas
Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 27.5x2.4"
Sisärenkaat
Standard, Presta Valve
Ohjaamo
Ohjainkannatin
Alloy Trail Stem, 35mm bar bore
Ohjaustanko
Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, S1-S2: 780mm width, S3-S6 800mm width
Kädensijat
Specialized Trail Grips
Satula
Body Geometry Bridge Saddle, steel rails
Satulatolppa
TranzX dropper, 34.9mm, S1: 100mm, S2: 125mm, S3: 150mm. S4-S5: 170mm, S6: 200mm
Tarvikkeet
SWAT
SWAT Internal downtube storage
Tuotetiedot
Tuotetunnus
221348
Vaatimustenmukaisuussertifikaatti
As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS.
For information on lithium-ion battery standards and regulations in New York City, visit: www.nyc.gov/fdny/batteries
Paino
Paino
26.08 kg (57 lb, 7.8 oz)
Painon mittaamisessa käytetty koko
S4
